ZE 3600

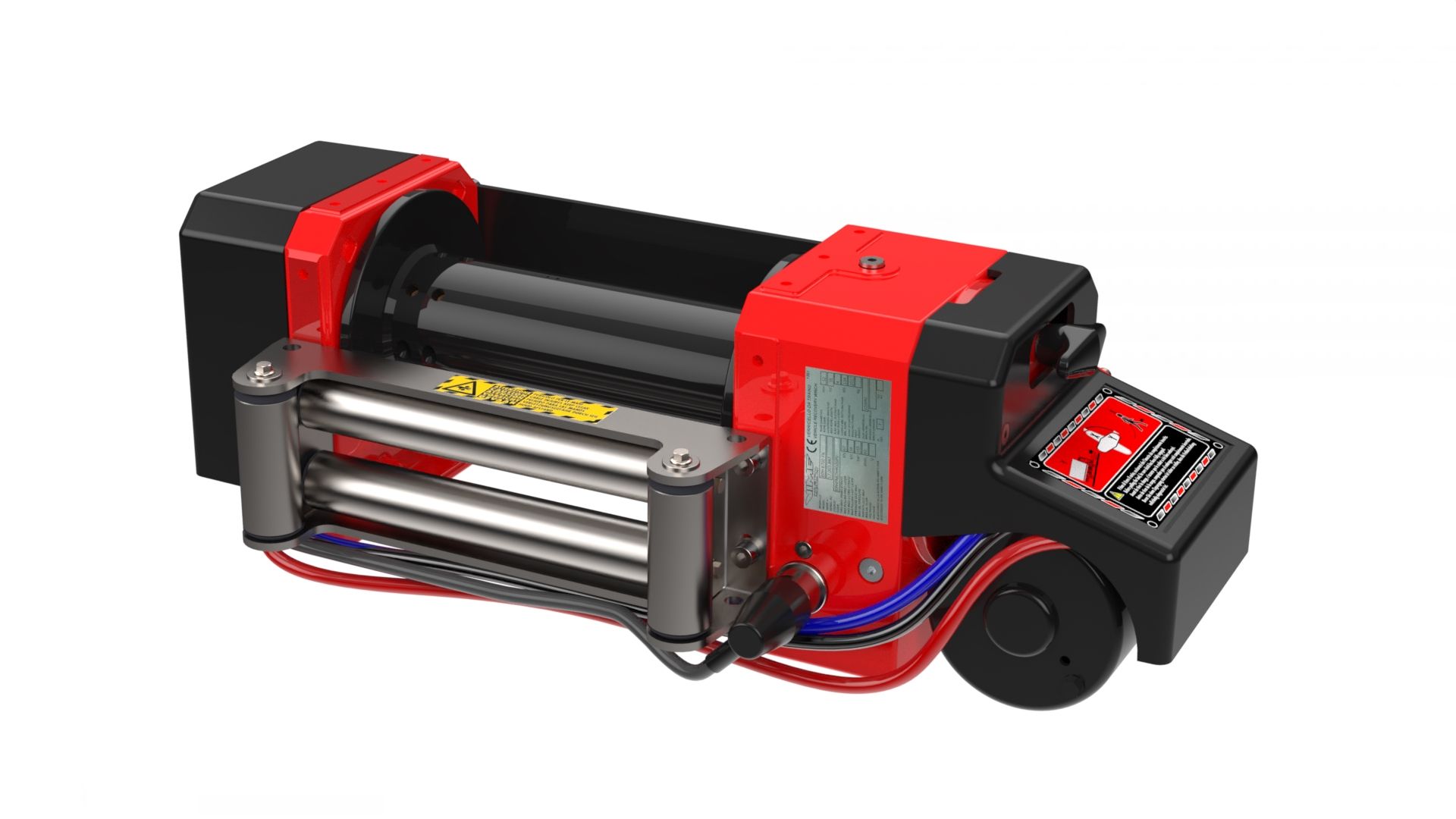

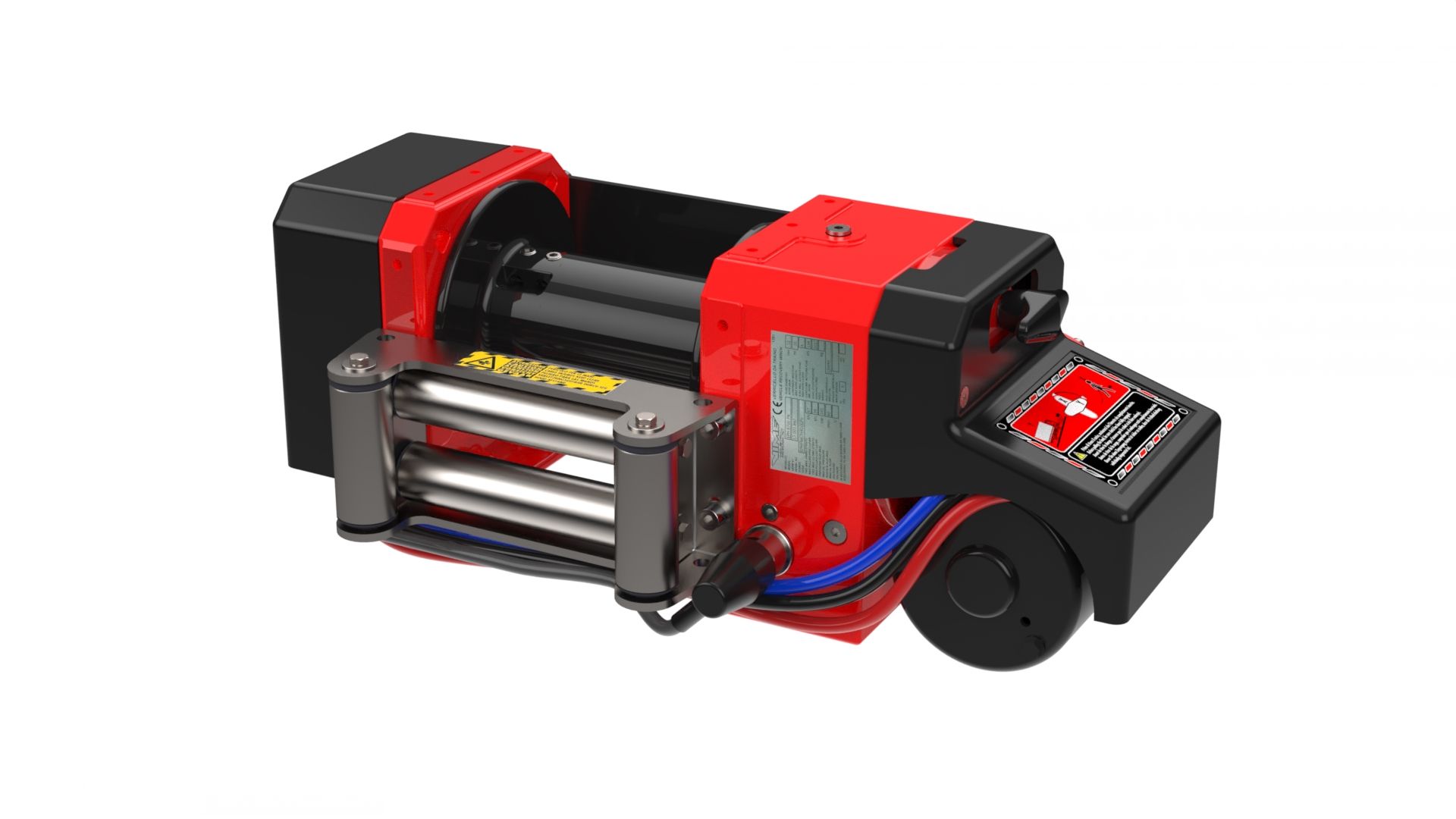

Models ZE are electric worm gear winches, designed for long life, offer best safe duty.

These winches are built according with higher safety standards in compliance with Directive Machinery 2006/42/CE EN 14492-1.

The special aluminium alloy bronze gear match to an hardened steel ground polished worm. Worm gear provides load reversing protection. Particularly fit for tow-trucks and for recovery of medium-light vehicles on tires, where the hydraulic system is not available.





© copyright V.I.M.E. srl

All the projects of our devices and products are covered and protected by copyright V.I.M.E.
Beware of imitations and/or distributors or dealers not authorized, V.I.M.E. devices and products are exclusively conceived, projected, produced and assembled by V.I.M.E. in Italy.

  • Tough

The special aluminium alloy bronze gear match to an hardened steel ground polished worm



  • Low mounting

Its particular design, make it proper for front end or rear vehicles mounting



  • Light and strong

Body manufactured from hardened special aluminium castings, which reduces weight and increases strength
Powder coat finished



  • Brake

Worm gear provides load-reversing protection



  • Drum clutch

Manual clutch for drum free spooling



  • Load limiting device

Electro-mechanical device to provide overload protection as safety measures. It stops the winch when reaching the maximum pulling capacity. Operates in one cable direction only (reel in rotation)



  • Remote control and electrical lead wire

Remote control switch assembly (includes plug and cable 4 Mt.(13,12 Ft.) provides control of the forward or reverse rotation of the spooling drum.
Battery leads 2 Mt.(6,56 Ft.)
Battery switch.

Radio control (optional accessory)



  • Drum sizes available

Short: 160 mm (6.3 inch) for ZEC
Long: 240 mm (9.4 inch) for ZEL



  • Totally oil cooled

Worm and gear in oil bath and gears lubricated for the entire life with grease, give best performance and extending components life span

  • Pulling capacity (first layer)

3.600 Kgs. [8.000 Lbs.]



  • Electric motor IP 55

12V - 24V DC



  • Wire rope dia.

9 mm [--]



  • Gear ratio

392:1



  • Max. wire rope capacity (EN 14492-1)

17 Mt. [55,8 Ft.] short drum ZEC
26 Mt. [85,3 Ft.] tlong drum ZEL



  • Max speed line (first layer no load)

5,5 Mt./Min. [18,0 Ft./Min.]



  • Weight w/o wire rope

30,5 Kg. [67,24 Lbs.]short drum ZEC

40 Kgs. [88,20 Lbs.] long drum ZEL

Winches model ZE have been designed to be equipped with several accessories such as :



• Zinc plated Heavy-duty roller fairlead

is made up by 2 horizontal rollers and 2 vertical rollers, used for lateral pullings to avoid damages to the cable and to the vehicle where the winch is installed



• Zinc plated Cable tensioner

keeps cable tightened on drum, while the winch is in the freespool mode



  • Radio control

to provide for remote winch wire rope winding and unwinding operation
